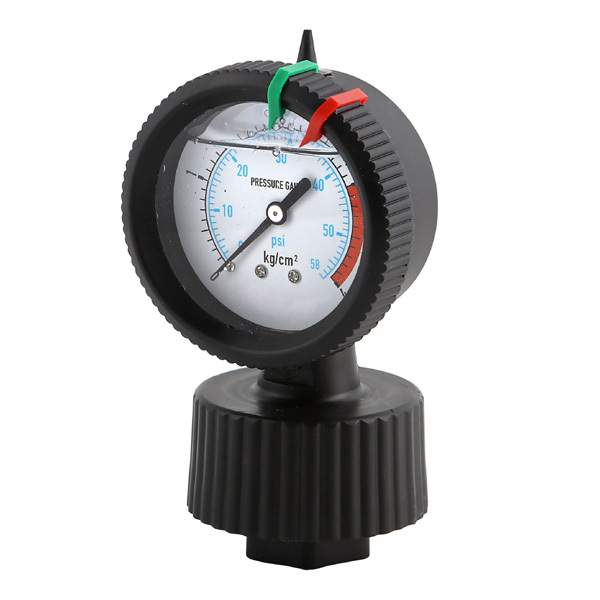

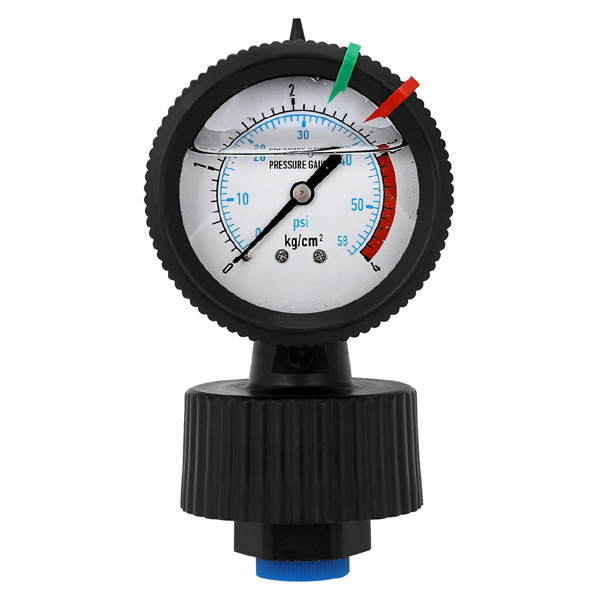

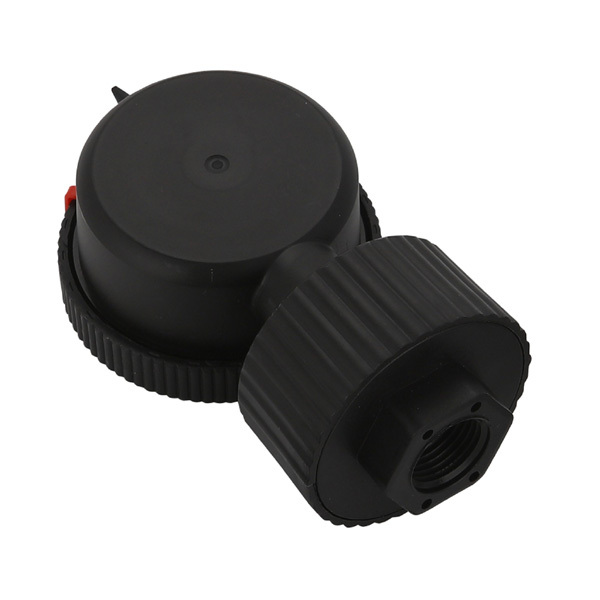

Diaphragm Pressure Gauge

Please select the prefered parameters listed in below, and click "Get A Quote" to Submit. Or Click "Add to Quote List" to submit with other models at same time. If no needed parameter or function is found on below corresponding item please click "other" and then fill it on "Specification requirements" after you arrived at "Get A Quote" sheet.
Pressure range:
0 - 10mbar
0 - 40bar
0 - 40Pa
0 - 6000Pa
-40 ~ 40KPa
0 - 400PSI
Other
Unit:
Mpa
Kpa
Psi
Kgf/cm²
Bar
mmH2O
mmHg
Pa
mbar
Diameter:
100mm
150mm
160mm
Other
Accuracy:
±1.0% of span
±1.6% of span
±2.50% of span
Connection size:
1/8NPT
1/4NPT
3/8NPT
1/2NPT
1/8BSP
1/4BSP
3/8BSP
1/2BSP
1/8BSPT
1/4BSPT
3/8BSPT
1/2BSPT
M10*1
M14*1.5
M20*1.5
Other
Connection location:
Lower mount
Case material:
PP Plastic
Stainless Steel
Connection material:
PP, diaphragm
Stainless steel
Diaphragm material:
316L
HC276
Ta
Monel
Ni
316L gold-plated
Ti Inconel625
S32205
321
316Ti
PTEF-plated
Flange material:
304SS
304L
316SS
316L
HC279
Ti surfaced plated
PTFE
Window:
Acrylic
Glass
Liquid filled:
Silicone oil
Glycerine
Fluoro oil
